Tidal predictions with the Admiralty Tide Tables – tidal prediction form and crossing a bar
NauticTools2 derives high and low water at a secondary port from the daily predictions of a standard port by the method of the Admiralty Tide Tables (ATT), lays out the result like the tidal prediction form and then answers the question that matters on board: how much water is there at a given time, and from when to when is it enough for my draught?
- ATT 2027
- Standard and secondary ports
- Seasonal changes
- Tidal prediction form
- Tidal curves
- Full working
What is a tidal prediction with the ATT?
The Admiralty Tide Tables give daily predictions for a limited number of major ports, the standard ports. For all other ports, the secondary ports, Part II lists time and height differences to a standard port. To find the tide at a secondary port you convert the daily predictions of the standard port. The height between high and low water is then read from the mean spring and neap curves of the standard port.
When do you need it?
- Entering over a bar or sill: from when to when is there enough water for your draught?
- Berths and locks: high and low water at a port without daily predictions of its own.
- Passage planning: matching departure and arrival times to the tide, in ship's time if you like.
- Checking your own working: every step is shown, so a calculation on paper can be compared line by line.
The working
- H – height of tide required, above chart datum
- HWH, LWH – high and low water heights at the secondary port
- f – factor from the tidal curve, read with the interval from high water
The calculation follows the order of the form, and that is how NauticTools2 shows it:
Status
From the new or full moon nearest to high water, the age of the tide leads to the middle of springs. Up to 2 days away counts as springs, up to 5 days as mean, beyond that as neaps.
Seasonal changes
The seasonal change of the standard port is subtracted from its height, that of the secondary port is added at the end. The value of the nearest first of the month applies.
Time differences
If the time lies between two column headings of Part II, the difference is shared out evenly and rounded to whole minutes.
Height differences
They depend on where the corrected height lies between the neap and spring levels, and are rounded to 0.1 m.
Height or time on the tidal curve
The spring and neap curves are weighted by the range at the standard port, then the factor is read off.
Worked example
Scharhorn, Beacon C (No. 1437a), referred to Cuxhaven (No. 1438), on 7 July 2027. The daily predictions for Cuxhaven give HW 15:27 at 3.9 m and LW 22:36 at 0.2 m, zone UTC+1. What is the height of tide at 16:00 ship's time (UT+2)?
Status: new moon 04.07.27 + 3 days = springs
Seasonal change (1 July): standard port 0.0 m, secondary port −0.1 m
HW: 15:27 − 45 min = 14:42 · 3.9 + 0.2 − 0.1 = 4.0 m
LW: 22:36 − 62 min = 21:34 · 0.2 − 0.1 − 0.1 = 0.0 m
Target time: 16:00 UT+2 = 15:00 UTC+1, so 18 min after HW
Factor on the tidal curve: f = 0.993
H = 0.0 + (4.0 − 0.0) · 0.993 ≈ 3.97 m
This task is saved in NauticTools2 and can be opened with Load.
What to watch out for
- Time zone: the times of the standard port are entered in the zone of its table, because the column headings refer to it. Set ship's time under Time on Board.
- Fields with § or ⊙: the book gives no value here. NauticTools2 does not carry on with 0, it tells you so.
- Limits of the curves: if the duration of rise or fall lies outside 5 to 7 hours, or shallow-water corrections apply, the Tide Tables call for the Simplified Harmonic Method. The tool points this out.
- Seasonal changes: only some of the ranges are supplied. If one is missing, a red note gives the number. Add the range from the book or enter the value by hand.
- Poole and the Solent: Poole Harbour and the Solent ports are not included yet, because their tidal curves refer to low water.
- Traced curves: the tidal curves are our own tracing after the Admiralty Tide Tables, not original curves of the UKHO. Small differences from the original are possible.
How it works in NauticTools2
-
Check or add the ports in “ATT Ports”
The ATT Ports tile holds the master data in five tabs: standard ports, secondary ports, seasonal changes, SHM ports and practice packages. The ATT 2027 data set comes with the app: the standard ports of Table V with levels, age of tide, time zone and column headings, plus 145 traced tidal curves of European ports. A few secondary ports are included as examples, you add others from Part II yourself.
One-off data supply: the ATT 2027 data set is supplied once only, so that the traced tidal curves can be included. There is no yearly data update. You maintain new editions yourself, as described under “New editions and practice data”.
Recommended order: complete the master data first, then calculate.
- Check or add the standard port.
- Add the secondary port from Part II and link it to the standard port.
- Add the seasonal changes for the number ranges of both ports, if they are missing.
- Only then open the Tides ATT tool.

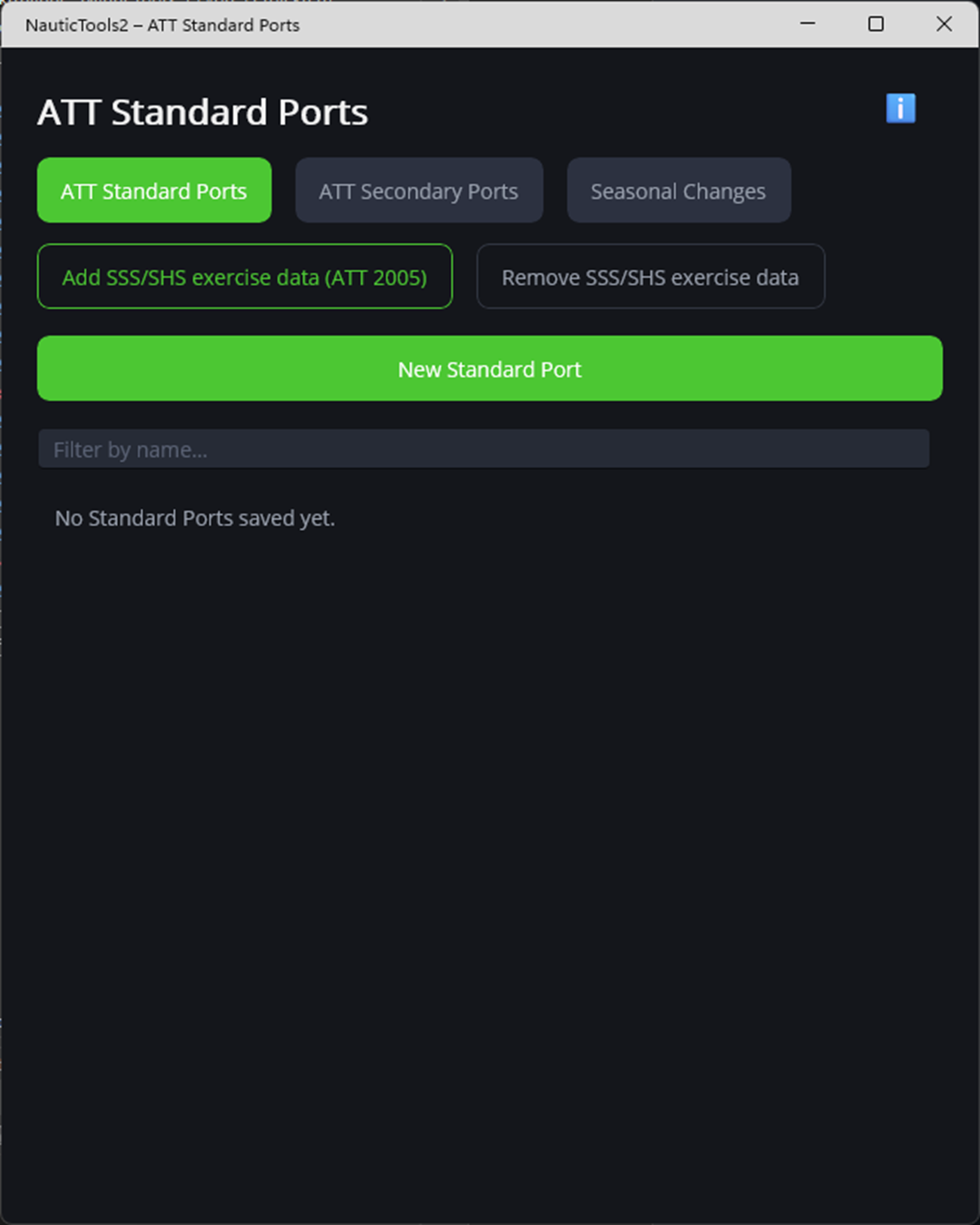

ATT Ports: all master data in one place, separated by data set. -
Find the port
In Tides ATT, enter the name or number at the top. A match selects the secondary port and the standard port together, even for ports divided in the book into sections (I, II) with their own column headings.

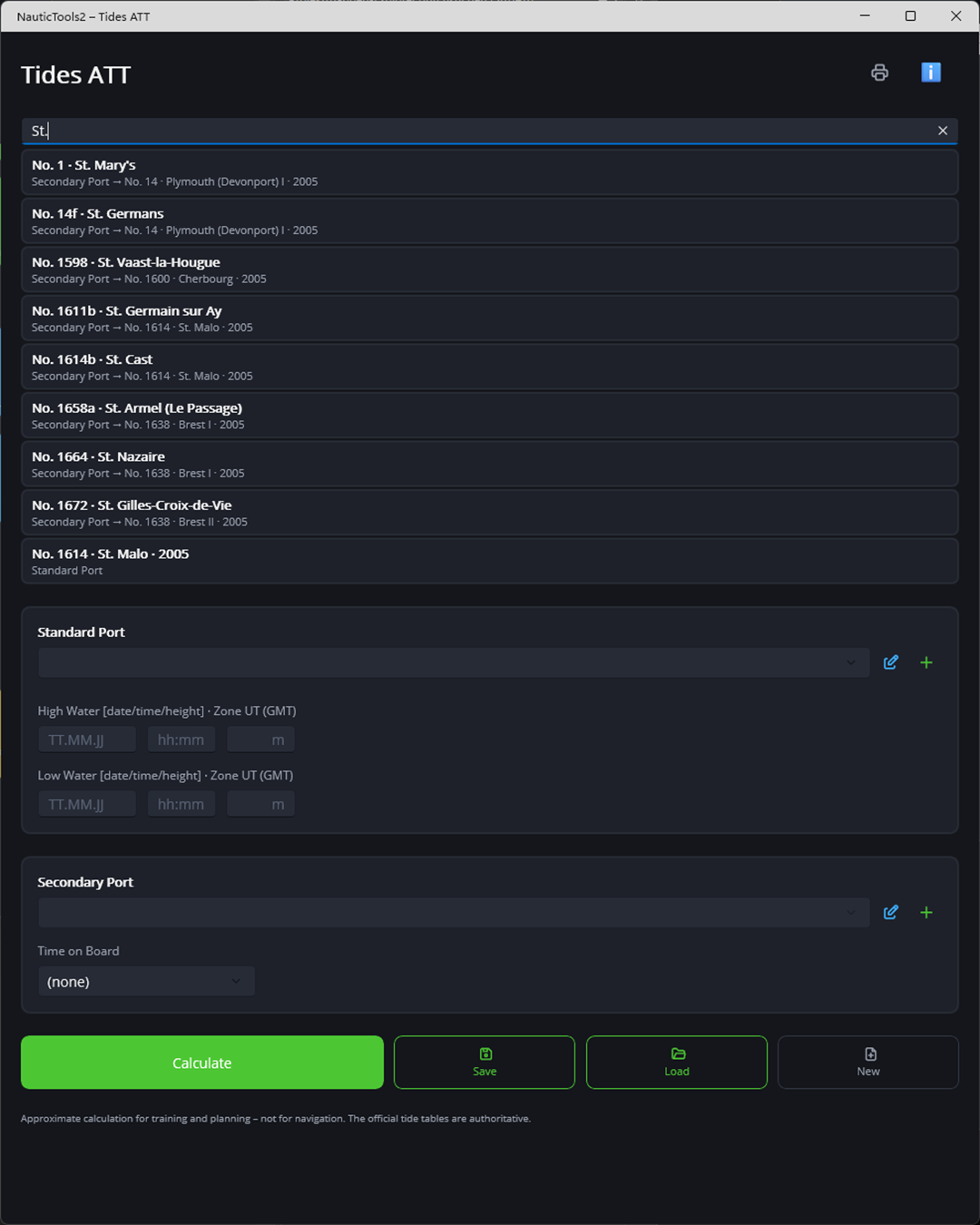

The search finds secondary and standard ports by name or number. -
Enter the daily predictions
Enter date, time and height of high and low water at the standard port. The first date is copied to the other empty fields. The app fills in the seasonal changes from the management.
-

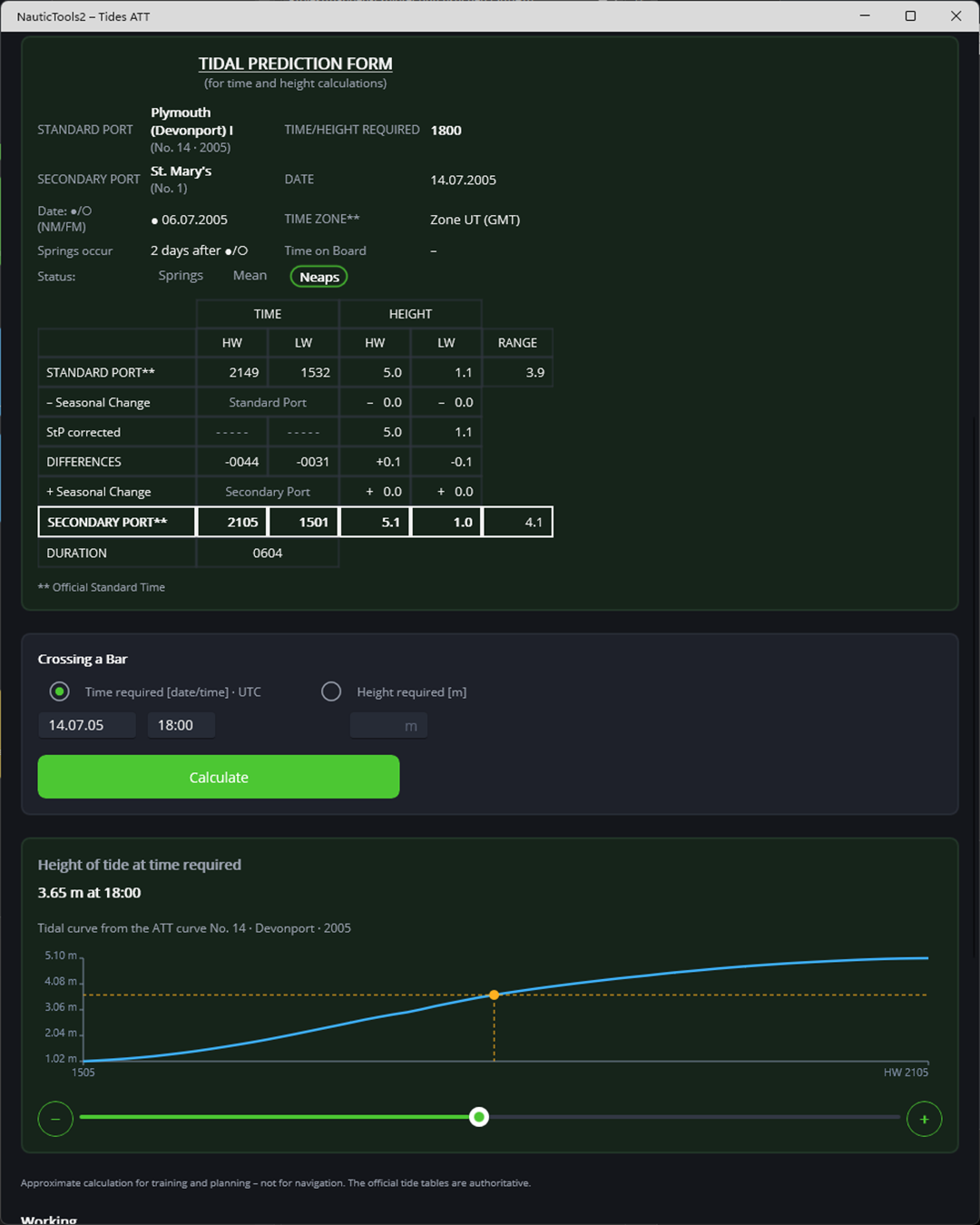

Calculate the tidal prediction form
Calculate fills in the form: the header with both ports, the status with springs, mean or neaps framed, and the lines from standard port to duration.

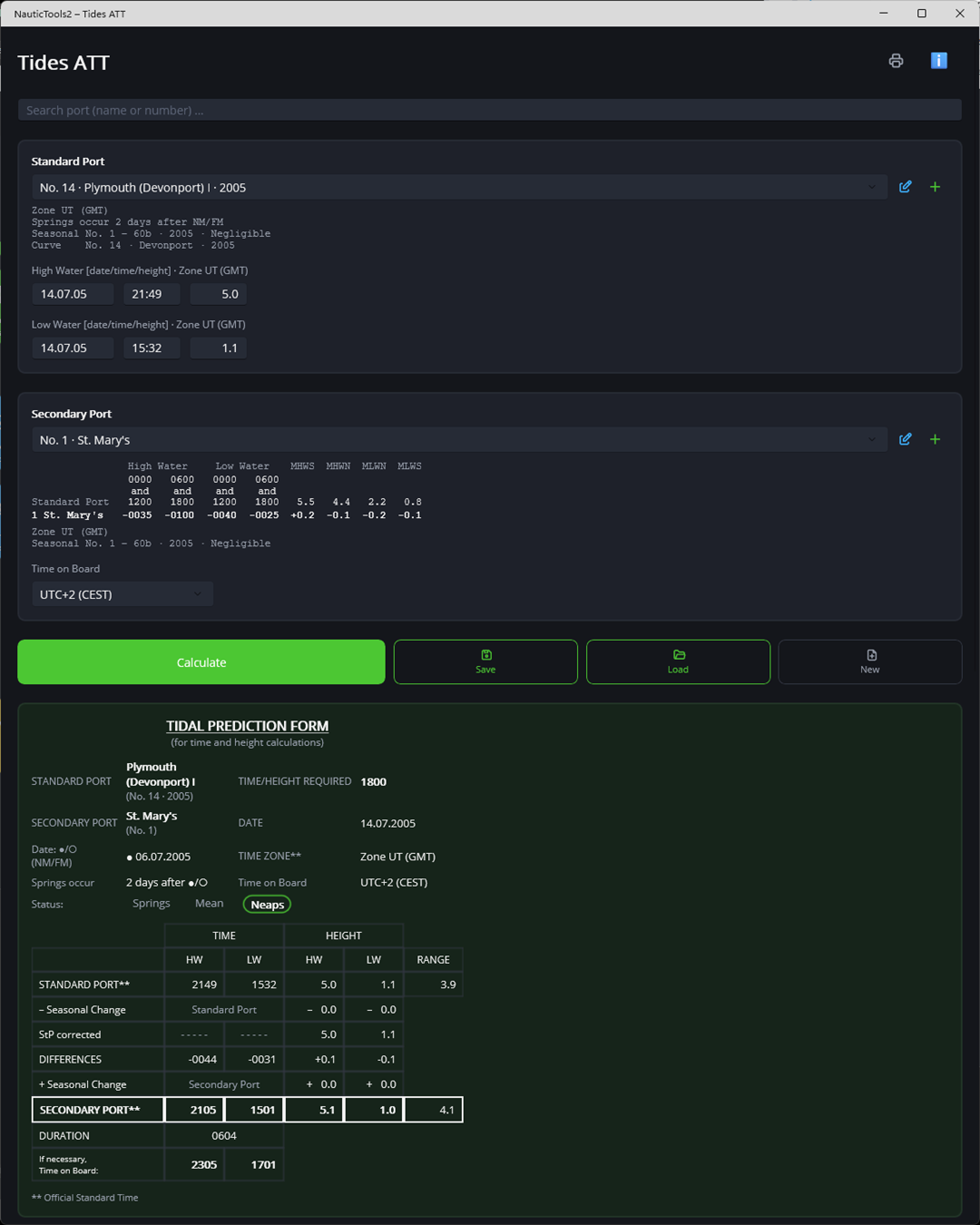

The tidal prediction form with all its lines. -
Crossing a bar
This block only appears afterwards, because as in the instructions of the Tide Tables the tidal calculation comes first. Choose the height at a target time or the time window for a minimum height. The slider below the tidal curve moves the time or reads off a height.

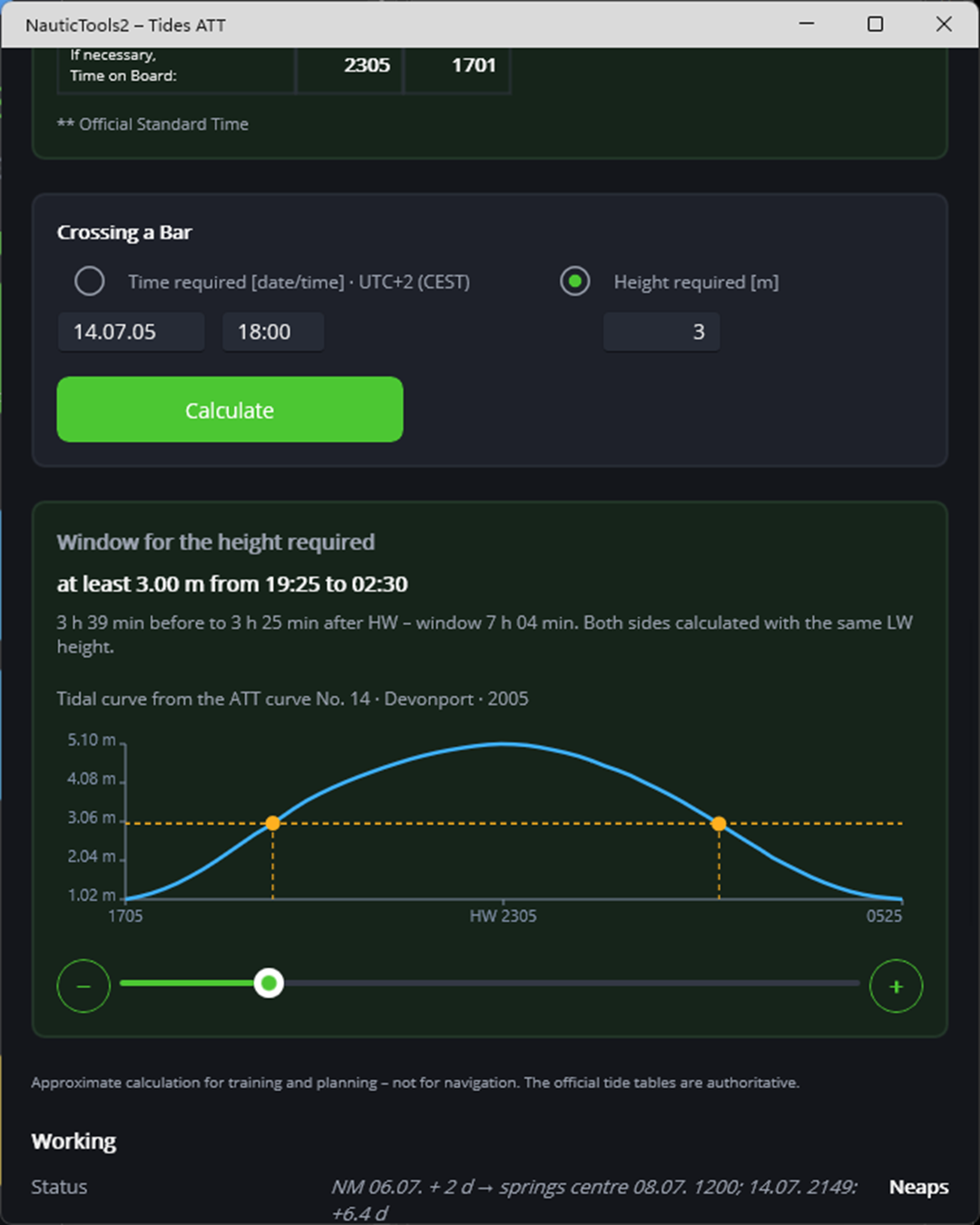

Time window for a minimum height on the traced tidal curve. -
Working, printing and saving
The working shows every intermediate step. The printout contains the form, the curve and the working. Save stores the ports, daily values and task in the chosen data set.
New editions and practice data
Standard ports, secondary ports, seasonal changes and saved tasks always belong to a data set, so editions do not get mixed up. The ⋯ menu copies ATT 2027 into a new year, for example. The copy counts as unchecked until it has been compared with the new book. Results calculated with it carry a red note.

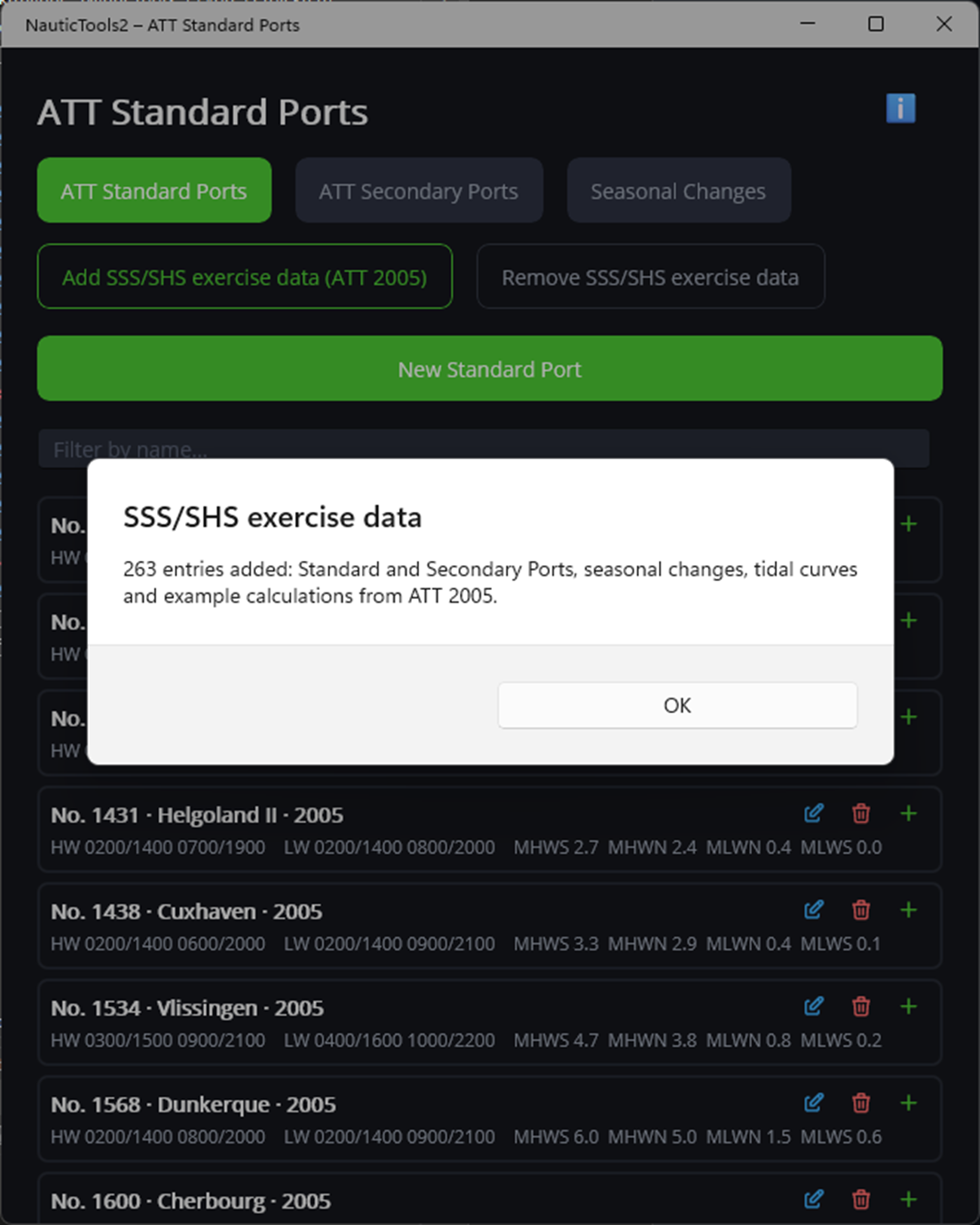

Practice packages offer ready-made data: the RYA Training Almanac and the ATT 2005 extracts from the German DSV course booklet. Each pack gets its own data set and can be removed again.
Report to print
Every calculation can be printed as a report or saved as a PDF, with the inputs, the completed tidal prediction form, the result, the tidal curve and the full working.
View the example report as a PDF ›
Frequently asked questions
What is the difference between a standard port and a secondary port?
The Admiralty Tide Tables give daily predictions for standard ports. For secondary ports Part II gives only time and height differences to a standard port, and their tide is calculated from those.
Do I have to enter the ports myself?
The standard ports of the ATT 2027 and 145 tidal curves of European ports are included in the app. You add secondary ports from Part II yourself, a few are included as examples.
Do I still need the Admiralty Tide Tables?
Yes. The daily predictions of the standard port and the differences of the secondary ports come from the book. NauticTools2 does the calculation and shows every step.
Not for navigation: all tidal values are approximations for training, exam preparation and passage planning. Traced tidal curves and calculation methods differ from the actual tide, and wind and air pressure change it further. For navigation, the official tide tables are authoritative.
