Coastal navigation
Limiting course – which course can the other vessel be on?
At night you often see nothing of another vessel but its lights. The combination of visible navigation lights and your own true bearing to the vessel gives a fixed sector of possible courses. NauticTools2 calculates the two limiting courses and draws the sector.
- Navigation lights
- Sidelights · stern light
- True bearing
- Course sector
- Diagram
- Slider
What is a limiting course?
Every navigation light shows only within a standard sector: the sidelights 112.5° each from the bow to starboard (green) and port (red), the stern light 135° aft. Which lights you see therefore tells you from which direction you are looking at the other vessel. Together with your own bearing this gives a range of possible courses – bounded by the two limiting courses.
The six light combinations
The overlapping sectors give six combinations, each with a fixed sector width:
- red and green – 6° (the vessel is heading straight for you)
- green only – 104.5°
- green and white – 10°
- white only – 125°
- red and white – 10°
- red only – 104.5°
The overlaps come from COLREG Annex I, Section 9: towards ahead each sidelight may show up to 3° across to the other side – 6° of red and green together. Aft, sidelight and stern light may each overlap by up to 5° – 10° together. That leaves 112.5° − 3° − 5° = 104.5° for “red only” and 135° − 2 · 5° = 125° for “white only”. These are maximum values, so the calculation covers the worst case.
When do you need it?
- Assessing the situation at night: Is the vessel meeting you, crossing, or ahead of you? The course sector answers it.
- Who gives way: Under the collision regulations the give-way vessel depends on how the courses cross.
- Narrowing down sailing vessels: For a vessel under sail, the wind direction narrows the sector further.
Calculation
Reciprocal bearing
The bearing from the other vessel to you: TB + 180°.
Sector boundaries
The visible lights tell you in which range of relative bearing (seen from the other vessel) you are – for the red light, on its port bow.
Limiting courses
Reciprocal bearing minus the two sector boundaries gives the two limiting courses. The true course lies between them.
NauticTools2 combines reciprocal bearing and sector boundary into one fixed value per light combination – for “red only”, 180° + 3° = 183° and 180° − 252.5° = −72.5°. Results below 0° or above 360° are corrected by 360°. This is also how the app shows the working:
| Visible | 1st limiting course | 2nd limiting course | at TB 045° |
|---|---|---|---|
| red only | TB + 183° | TB − 72.5° | 228.0° / 332.5° |
| green only | TB − 183° | TB + 72.5° | 222.0° / 117.5° |
| white only | TB − 62.5° | TB + 62.5° | 342.5° / 107.5° |
| red and green | TB + 177° | TB + 183° | 222.0° / 228.0° |
| red and white | TB − 72.5° | TB − 62.5° | 332.5° / 342.5° |
| green and white | TB + 72.5° | TB + 62.5° | 117.5° / 107.5° |
Example
A vessel bears 045° true and only its red sidelight is visible. Within which course range can it be?
Reciprocal bearing = 045° + 180° = 225°
1st limiting course = 228.0°
2nd limiting course = 332.5° (sector width 104.5°)
Things to watch
- True bearing: The bearing must be true – convert a compass or radar relative bearing first with the bearing conversion.
- Boundaries are blurred: At the sector boundaries the lights overlap by a few degrees – hence the narrow “red and white” and “green and white” sectors.
- Watch other lights: Masthead lights, deck lights or special lights give further clues to the vessel's type and course.

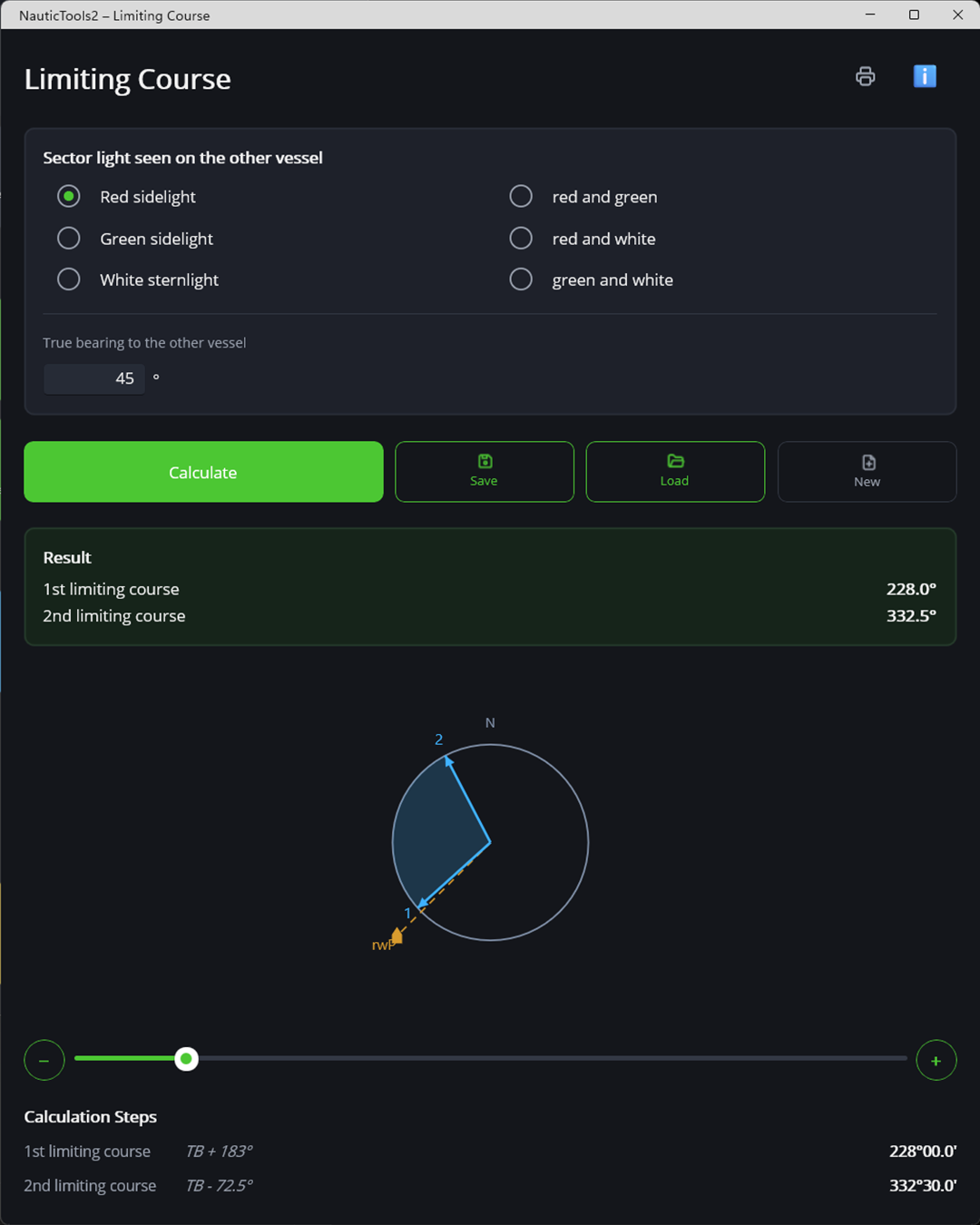

How it works in NauticTools2
Choose visible lights
Select the combination you can see on the other vessel.
Enter the bearing
Enter the true bearing (TB) to the other vessel.
Calculate
NauticTools2 shows the 1st and 2nd limiting course and draws the sector.
Move your position
The slider under the diagram moves your own position around the other vessel – the bearing runs from 0° to 360°. Limiting courses and diagram update instantly while dragging, so you can see how the course sector turns with the bearing.
Frequently asked questions
Why do you sometimes see red and green at the same time?
Then you are looking almost straight at the other vessel's bow – it is heading directly for you. The possible course sector is only 6° wide.
What does white only mean?
You see the stern light, so you are astern of the other vessel. It is moving more or less away from you – if you are faster, you are the overtaking vessel.
Does this apply to power-driven vessels too?
Yes, sidelights and stern light are standardised for all power-driven and sailing vessels. Power-driven vessels additionally carry one or two masthead lights.
