Coastal navigation
Current triangle – where does the stream set me?
A vessel steering a course through the water is also set by the tidal stream or current. Its track over the ground is the water track plus the current – drawn as the current triangle. NauticTools2 solves all three classic tasks, draws the triangle and shows the full working.
- CTW · STW
- COG · SOG
- Set · drift
- Correction angle
- Plot
What is the current triangle?
Six values describe a passage in a stream: course and speed through the water (CTW, STW), the direction and rate of the current (set and drift), and course and speed over the ground (COG, SOG). Laid end to end as arrows they form a triangle: water track plus current gives the ground track. Know four of the six and the other two follow.
The three tasks
- Where will I end up? Known CTW, STW, set and drift – find COG and SOG.
- What course do I steer? Known COG, STW, set and drift – find the course to steer (CTW) and the SOG.
- What is the current? Known CTW, STW, COG and SOG (for example from GPS) – find set and drift.
All three also give the current correction angle (CCA) between CTW and COG, which feeds into course conversion.
When do you need it?
- Shaping a course in tidal waters: What course must I steer to reach the fairway buoy across the stream?
- Dead reckoning: Where will I be after an hour if the stream sets me sideways?
- Finding the current: GPS (COG, SOG) together with log and compass (CTW, STW) reveal the actual current – for comparison with the tidal stream atlas.
Formulas and working
NauticTools2 works with the north and east components of the arrows. For “where will I end up?”:
Course over ground
COG = arctan(E / N), in the right quadrant.
Speed over ground
SOG = √(N² + E²)
Correction angle
CCA = COG − CTW
Course to steer: Use the auxiliary angle α between CTW and COG: sin α = drift · sin(set − COG) / STW, then CTW = COG − α and SOG = STW · cos α + drift · cos(set − COG). If the current is stronger than your own speed there may be no solution – the destination cannot be reached against the stream.
Worked examples

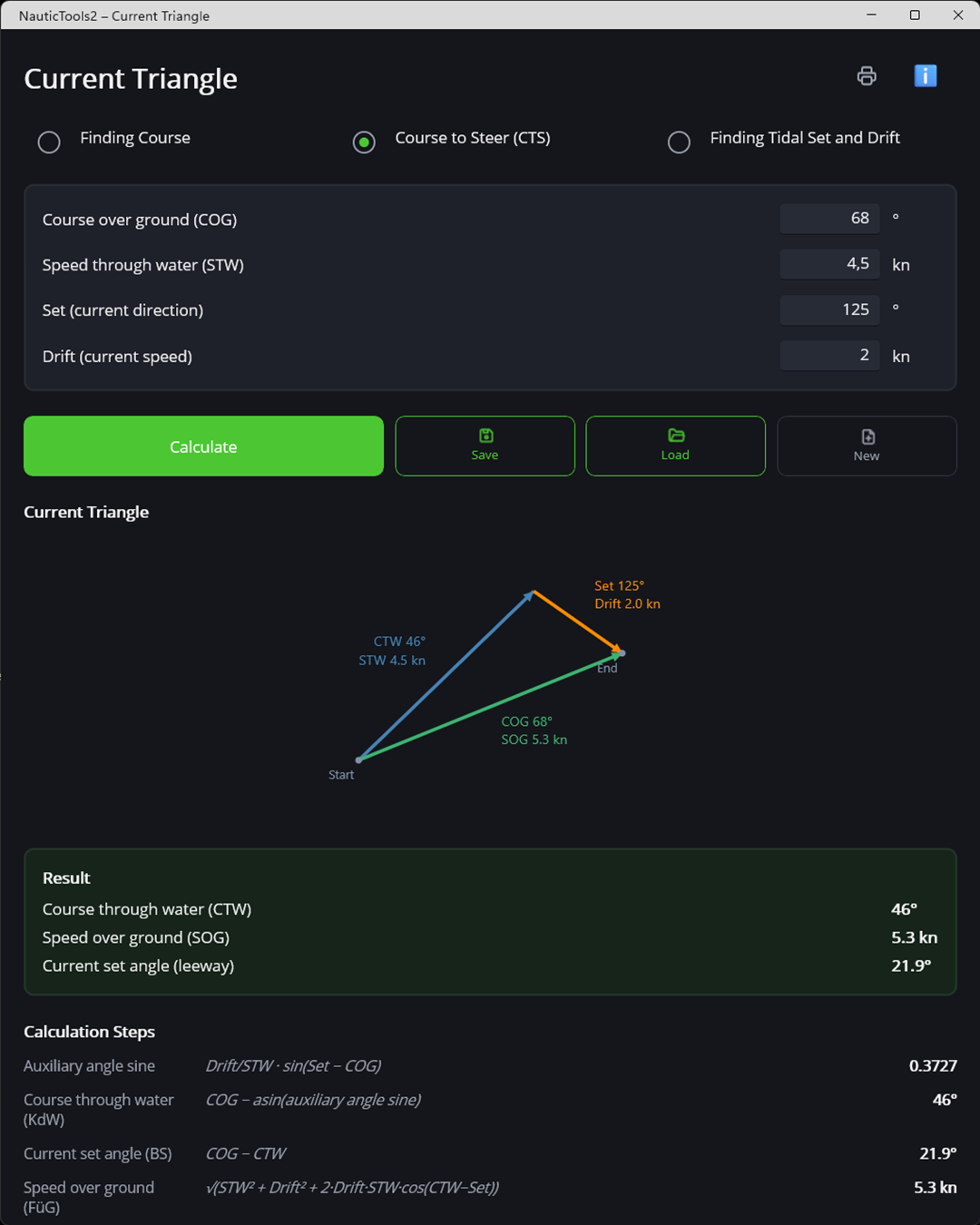

What course do I steer? You want to make good 068° over the ground. The log shows 4.5 kn, the current sets 125° at 2 kn.
set − COG = 125° − 068° = 57°
sin α = 2 · sin 57° / 4.5 = 0.373 → α = 21.9°
CTW = 068° − 21.9° ≈ 046°
SOG = 4.5 · cos 21.9° + 2 · cos 57° = 4.18 + 1.09 ≈ 5.3 kn
Where will I end up? You steer 046° at 4.5 kn, the current sets 125° at 2 kn.
N = 4.5 · cos 46° + 2 · cos 125° = 3.13 − 1.15 = 1.98
E = 4.5 · sin 46° + 2 · sin 125° = 3.24 + 1.64 = 4.88
COG = arctan(4.88 / 1.98) ≈ 068°, SOG = √(1.98² + 4.88²) ≈ 5.3 kn
Things to watch out for
- Set means “towards”: Unlike wind, the direction of a current is where it flows to. A current setting 125° comes from the north-west.
- The stream changes: In tidal waters set and rate change every hour. For longer passages work the triangle hour by hour or use an average.
- Leeway first: Leeway belongs in course conversion between true course and water track. The current triangle starts from the course through the water.
- Speed through the water, not over the ground: The log measures speed through the water – that is what goes into the triangle.
How it works in NauticTools2
Choose the task
Where will I end up, what course do I steer, or what is the current.
Enter four values
The known courses and speeds.
Calculate
The triangle is drawn and the result and working appear. If course conversion is open, it takes over the correction angle and course automatically.
Printable calculation record
Every current calculation can be printed as a clear record or saved as a PDF – with inputs, current triangle, result and the full working.
View the example record as PDF ›
Frequently asked questions
What is the difference between current and leeway?
The current moves the whole body of water with the boat in it; leeway is the wind pushing the boat sideways through the water. That is why leeway belongs in course conversion and the current in the current triangle.
Where do I get set and drift from?
From the tidal stream atlas, the tidal diamonds on the chart or tide tables – or afterwards from GPS and log with the third task.
Why is speed over the ground sometimes higher than through the water?
When the current has a component in your direction of travel, it pushes you along. Against the stream, speed over the ground is lower.
Related tools
- Course Conversion – from compass course to course over ground
- Dead Reckoning – position from course and distance
- Distance, Speed and Time – arrival time with speed over ground
